Tenant Isolation

All SaaS applications provide service to multiple customers or tenants. Isolating each tenant's data from another tenant is so basic yet hard to do. Nile enables tenant data isolation without any complex, buggy code or dealing with messy row-level security policies. With Postgres being tenant-aware in Nile, this becomes straightforward.

What is tenant data isolation?

A SaaS application serves many tenants. The data for each tenant belongs to the tenant and should not be accessible to other tenants. The users who belong to a specific tenant can access the data they have access to for that tenant. This seems so obvious but yet so hard to achieve in practice.

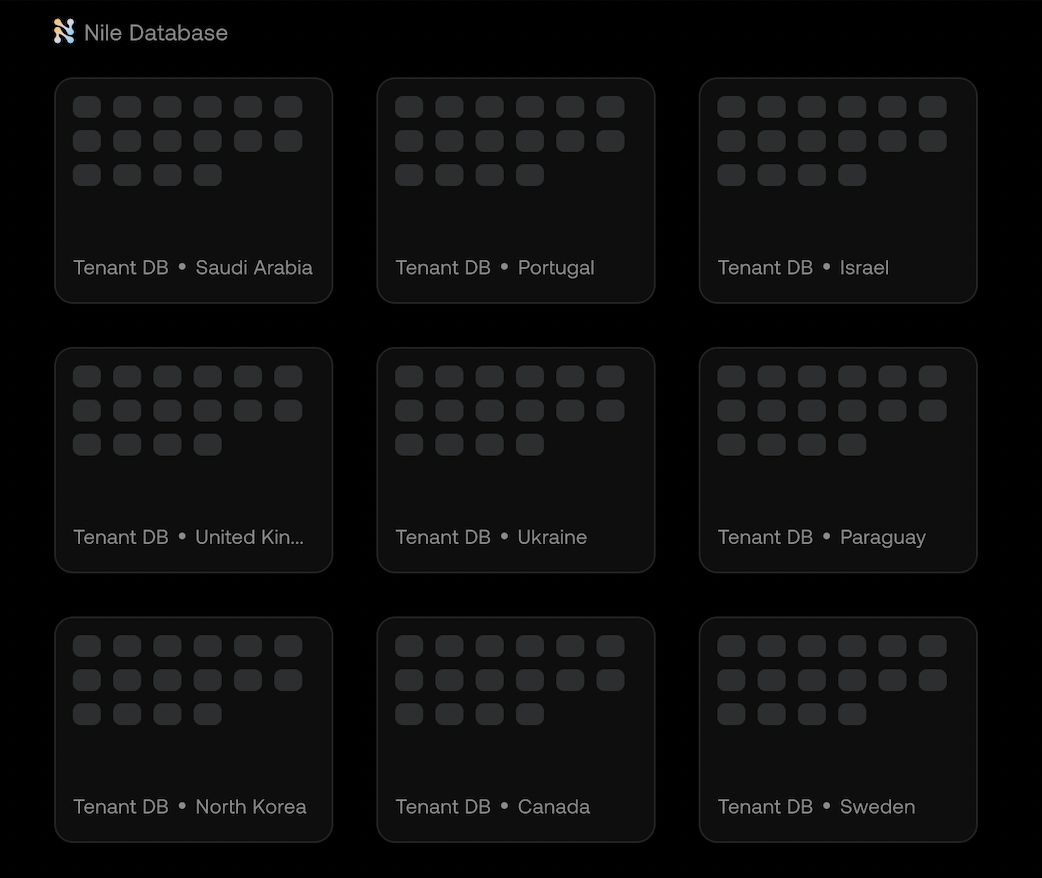

In Nile, you can think about it as a single Postgres that has many virtual tenant DBs. You can control where these virtual DBs should be placed. This can be on multitenant or dedicated instances. You get to decide while creating the tenant. This can also be in any region of the world. Nile enables isolation with a single line of code in your application. Nile also ensures user authorization is enforced within a tenant if you use our user management (more about this later) Tenant Isolation

Enforcing tenant data isolation

Nile makes it really easy to enforce tenant data isolation. Let us take a recruiting SaaS product that helps a company to source, interview and hire candidates for different jobs open to be filled. A simplified version will have a ‘candidates’ table that tracks all the candidates in flight. The list of candidate is private to each company using the recruiting product. Given that the candidate information needs to be private to each company, let us create a tenant aware table in Nile’s Postgres.

create table candidates (
  tenant_id uuid,
  id integer,
  name text,
  status text,
  resume_url text,
  job_applied text,
  applied_date TIMESTAMP,
  CONSTRAINT FK_tenants FOREIGN KEY(tenant_id) REFERENCES tenants(id),
  CONSTRAINT PK_candidates PRIMARY KEY(tenant_id,id));
insert into tenants (id, name) values
(default, 'customer3'),
(default, 'customer4'),
(default, 'customer5');

Let us populate the candidate table for couple of tenants. Typically, these candidates will be inserted by the application as candidates apply for the job. We will manually populate them in this case.

-- inserting candidates for tenant 018ade1a-7830-7981-b23f-f3a7f7b8f09f
insert into candidates
  (tenant_id,id,name,status, resume_url, job_applied, applied_date)
  ('018ade1a-7830-7981-b23f-f3a7f7b8f09f',1324,'Candidate1','New Application','http://myresume.com/index.html','software engineer','2023-08-22 19:10:25-07'),
  ('018ade1a-7830-7981-b23f-f3a7f7b8f09f',2356,'Candidate2','Phone Interview','http://myprofile.com/index.html','senior software engineer','2023-07-12 18:09:15-07');
-- inserting candidates for tenant 018ade1a-7843-7e60-9686-714bab650998
insert into candidates
  (tenant_id,id,name,status, resume_url, job_applied, applied_date)
  ('018ade1a-7843-7e60-9686-714bab650998',2532,'Candidate1','Onsite','http://checkresume.com/index.html','Principal engineer','2023-07-20 12:08:14-06'),
  ('018ade1a-7843-7e60-9686-714bab650998',7374,'Candidate2','Final round','http://forinterview.com/index.html','Product manager','2023-06-04 11:08:11-06'),
  ('018ade1a-7843-7e60-9686-714bab650998',8345,'Candidate3','Recruiter screen','http://career.com/index.html','Saled engineer','2023-09-10 10:08:12-06');

Now we have a table of candidates for multiple customers populated.

select * from candidates;
018ade1a-7830-7981-b23f-f3a7f7b8f09f1324Candidate 1New Applicationhttp://myresume.com/index.htmlsoftware engineer2023-08-22T19:10:25.000
018ade1a-7830-7981-b23f-f3a7f7b8f09f2356Candidate 2Phone Interviewhttp://myprofile.com/index.htmlsenior software engineer2023-07-12T18:09:15.000Z
018ade1a-7843-7e60-9686-714bab6509982532Candidate 1Onsitehttp://checkresume.com/index.htmlPrincipal engineer2023-07-20T12:08:14.000Z
018ade1a-7843-7e60-9686-714bab6509987374Candidate 2Final roundhttp://forinterview.com/index.htmlProduct manager2023-06-04T11:08:11.000Z
018ade1a-7843-7e60-9686-714bab6509988345Candidate 3Recruiter screenhttp://career.com/index.htmlSales engineer2023-09-10T10:08:12.000Z

In a typical SaaS application, you would want to access the data of a specific tenant when user accesses the application. You also want to make sure the data from another tenant is not seen. This is typically hard without implementing complex permissions at the application level or enforcing row level security policies in Postgres which is hard to maintain, debug and error prone.

Nile has first class support for tenant isolation at for SQL and all our SDKs which makes it very trivial to do. At the SQL layer, setting a session context to a specific tenant is equivalent to pointing the connection to a specific tenant DB. You can still access shared tables in this mode but the other virtual tenant DBs are not accessible. We also provide a very simple user context mode which adds additional security on top of the tenant context. Read more about this in user authorization.

-- set session context to the tenant you want to access.
set nile.tenant_id = '018ade1a-7830-7981-b23f-f3a7f7b8f09f';
select * from candidates;
018ade1a-7830-7981-b23f-f3a7f7b8f09f1324Candidate 1New Applicationhttp://myresume.com/index.htmlsoftware engineer2023-08-22T19:10:25.000
018ade1a-7830-7981-b23f-f3a7f7b8f09f2356Candidate 2Phone Interviewhttp://myprofile.com/index.htmlsenior software engineer2023-07-12T18:09:15.000Z

Querying across tenants

While Nile provides tenant isolation, it also provides the ability for you to query across tenants and shared tables. This is typically useful during development, production debugging or to do basic analytics across customers. Our customer dashboard already provides you useful analytics but you can always run raw SQL queries for more information. When no tenant context is set, the connection can access across all the tenant DBs irrespective of where the tenants are located (any region, multitenant or dedicated infrastructure).

  1. Querying the total no of customers
-- Calculate the total no of customers signed up for the product
select count(*) as no_of_customers from tenants;
  1. Querying the total no of candidates per customer
-- Calculates the total no of candidates per tenant that have
-- applied for a job for a recruiting product. Can be used to define
-- active tenants
select t1.id as customer_id,t1.name as customer_name,
count(c1.id) as no_of_candidates from candidates c1
right join tenants t1 on c1.tenant_id=t1.id group by t1.id,t1.name;
018ad859-3977-7c0d-8de1-7c6add417cdbcustomer 12
018ade1a-7830-7981-b23f-f3a7f7b8f09fcustomer 23
018ade1a-7843-7e60-9686-714bab650998customer 30
018ade1a-7854-7612-9126-7496dcbc7b62customer 40
018ade1a-7891-76df-afb2-3ed96235c62ccustomer 50
  1. Finding the number of customers that have atleast one candidate added in June:
select tenant_id from candidates
where extract(month from applied_date)=6;

What is tenant performance isolation?

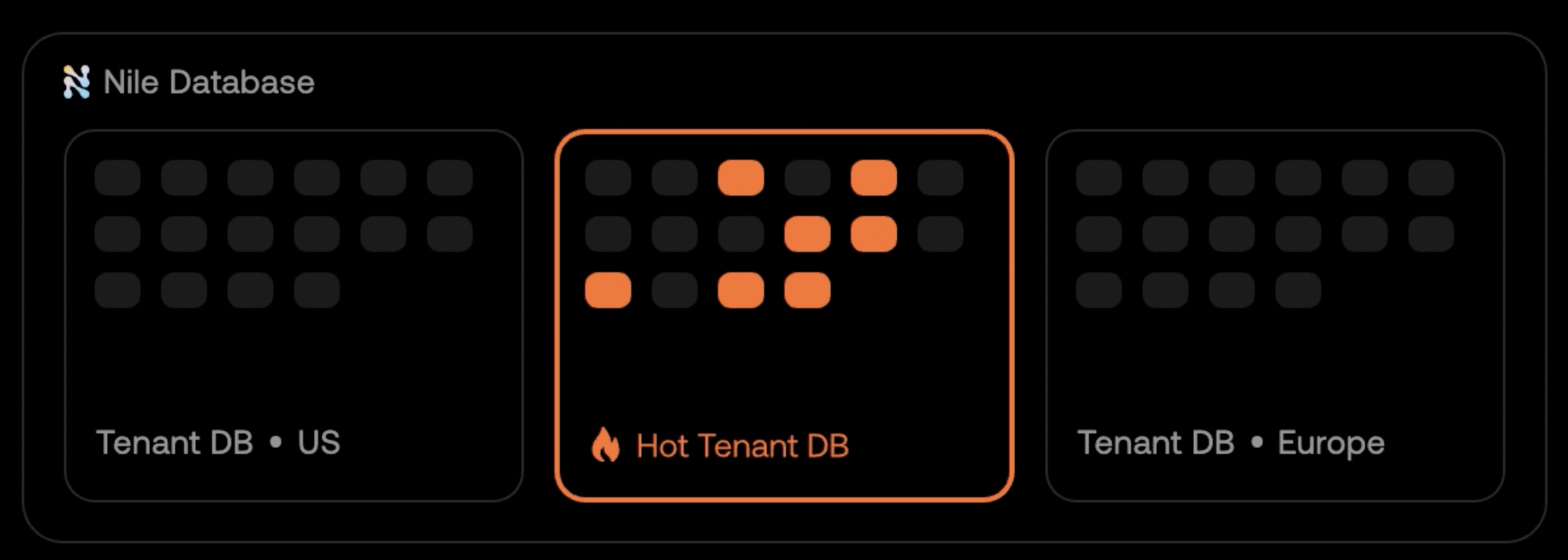

Apart from data isolation, another key isolation for SaaS applications is to ensure the performance of one tenant is not impacting other tenants. This is usually called noisy neighbor problem. The most trivial way to achieve this at the database level is to have a separate database per tenant. There are obvious downsides to this approach from operational overhead (schema rollouts, monitoring, capacity planning), cost (lower utilization) and application complexity (metadata management, routing). The other extreme is to have all tenants on the same database and solve tenant isolation problems by scaling up or application level quotas. This approach has the benefit of having lesser operational complexity and lower cost. Practically, all SaaS applications ends up with a hybrid model depending on their use cases and customer needs.

How does Nile achieve performance isolation between tenants?

Nile’s Postgres by default places tenants in a multitenant model but provides the flexibility to also place some of the tenants in dedicated infrastructure (coming soon). The most ideal scenario is to receive predictable workload throughout the day from all tenants. You could then scale the infrastructure for that workload. However, in practice, you would typically get random peak workloads from different tenants. This makes it hard to plan for.

There are different approaches to tackle this problem. You could either over provision for the worst case and waste resources or have the ability to instantly auto scale. Another thing with multitenant workloads is that as demand increases, the total workload tends to flatten out and becomes much more predictable to plan for. As scale increases, this gets easier. Another approach is to move tenants between machines to rebalance depending on workload distribution and infrastructure utilization. Nile employs all these approaches to ensure tenants never get impacted by the performance of other tenants. A future plan is to also allow users to specify the resource quota for each tenant which Nile can enforce. This would help to avoid spending too much resources for some of your tenants (example, your free tier customers can have more aggressive quotas). Tenant Isolation
